概述

AOA体育（China）官方网站亮点
类别：
线对板AOA体育（China）官方网站
间距：
1.00 mm, 1.50 mm
回路数：
2 - 12
电流：
1.5A, 3.0A

特性和优点
Ultra-low-profile mated height (1.50 mm and 2.00 mm versions)
节省空间
Side positive locks
Ensure secure mating retention and additional space savings
Beveled header pin design
Provides smoother mating and pin-and-contact protection
宽型坚固安装焊钉（焊片）
Offers secure PCB retention and additional mechanical stability
极化/插配引导功能
Prevent mismating and facilitate mating
顶部摩擦锁
Provide additional mating retention and visual mating assurance

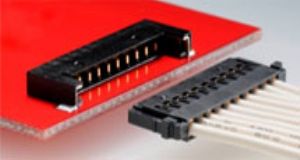

Notebook and Tablet PCs with large graphic displays continue to get thinner in design and more powerful in functionality.This combination has created a need for a new style of connector that offers a very low profile, high current-carrying capability and a robust positive lock to maintain connection even when subjected to shock or vibration.The new Pico-Lock system now available in 1.00 and 1.50 mm pitch versions is the first miniature wire-to-board connector system to combine all these features to meet these needs.
