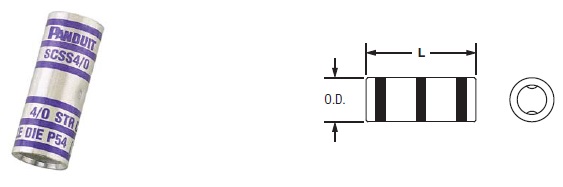

Code Conductor, Short Barrel, Butt Splice

Type SCSS

Part Number	Copper Conductor Size	Barrel O.D.	L	Panduit Color Code	Panduit Die Index No.‡	Burndy Die Index No.‡	T&B Die Index No.‡	Wire Strip Length
SCSS8-L	#8 AWG	0.27	1	Red	P21	49	21	7/16
SCSS6-L	#6 AWG	0.31	1	Blue	P24	7	24	7/16
SCSS4-L	#4 AWG	0.38	1	Gray	P29	8	29	7/16
SCSS2-Q	#2 AWG	0.42	1.25	Brown	P33	10	33	9/16
SCSS1-Q	#1 AWG	0.46	1.44	Green	P37	11	37	11/16
SCSS1/0-X	1/0 AWG	0.52	1.44	Pink	P42	12	42	11/16
SCSS2/0-X	2/0 AWG	0.58	1.56	Black	P45	13	45	3/4
SCSS3/0-X	3/0 AWG	0.64	1.69	Orange	P50	14	50	3/4
SCSS4/0-X	4/0 AWG	0.71	1.81	Purple	P54	15	54	13/16
SCSS250-X	250 kcmil	0.77	2.19	Yellow	P62	16	62	1 1/16

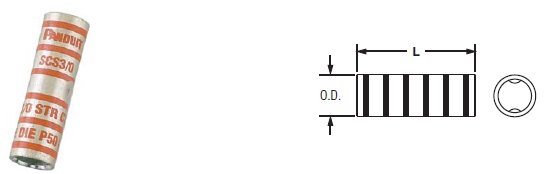

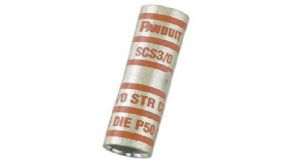

Code Conductor, Standard Barrel, Butt Splice

Type SCS

Part Number	Copper Conductor Size	Barrel O.D.	L	Panduit Color Code	Panduit Die Index No.‡	Burndy Die Index No.‡	T&B Die Index No.‡	Wire Strip Length
SCS8-L	#8 AWG	0.27	1.5	Red	P21	49	21	11/16
SCS6-L	#6 AWG	0.31	1.75	Blue	P24	7	24	13/16
SCS4-L	#4-#3 AWG STR, #2 AWG SOL	0.38	1.75	Gray	P29	8	29	13/16
SCS2-Q	#2 AWG	0.42	1.87	Brown	P33	10	33	7/8
SCS1-E	#1 AWG	0.47	1.87	Green	P37	11	37	7/8
SCS1/0-X	1/0 AWG	0.52	1.87	Pink	P42	12	42	7/8
SCS2/0-X	2/0 AWG	0.58	2	Black	P45	13	45	15/16
SCS3/0-X	3/0 AWG	0.64	2.12	Orange	P50	14	50	1
SCS4/0-X	4/0 AWG	0.71	2.12	Purple	P54	15	54	1
SCS250-X	250 kcmil	0.77	2.25	Yellow	P62	16	62	1 1/16
SCS300-X	300 kcmil	0.81	2.25	White	P66	17	66	1 1/16
SCS350-X	350 kcmil	0.87	2.37	Red	P71	18	71	1 1/8
SCS400-6	400 kcmil	0.95	2.5	Blue	P76	19	76	1 3/16
SCS500-6	500 kcmil	1.05	2.87	Brown	P87	20	87	1 3/8
SCS600-6	600 kcmil	1.18	2.87	Green	P94	22	94	1 3/8
SCS750-6	750 kcmil	1.29	3.37	Black	P106	24	106	1 5/8
SCS1000-3	1000 kcmil	1.5	3.87	White	P125	27	125	1 7/8

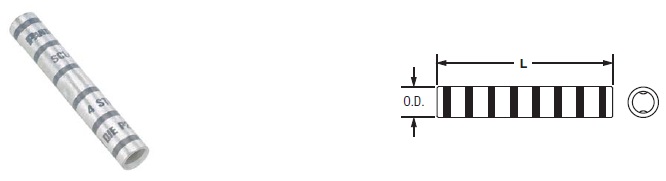

Code Conductor, Long Barrel, Butt Splice

Type SCL

Part Number	Copper Conductor Size	Barrel O.D.	L	Panduit Color Code	Panduit Die Index No.‡	Burndy Die Index No.‡	T&B Die Index No.‡	Wire Strip Length
SCL8-L	#8 AWG	0.27	2.25	Red	P21	49	21	1 1/16
SCL6-L	#6 AWG	0.31	2.38	Blue	P24	7	24	1 1/8
SCL4-L	#4-#3 AWG STR, #2 AWG SOL	0.38	2.38	Gray	P29	8	29	1 1/8
SCL2-Q	#2 AWG	0.42	2.62	Brown	P33	10	33	1 1/4
SCL1-E	#1 AWG	0.47	2.87	Green	P37	11	37	1 3/8
SCL1/0-X	1/0 AWG	0.52	2.87	Pink	P42	12	42	1 3/8
SCL2/0-X	2/0 AWG	0.58	3.13	Black	P45	13	45	1 1/2
SCL3/0-X	3/0 AWG	0.64	3.12	Orange	P50	14	54	1 1/2
SCL4/0-X	4/0 AWG	0.71	3.37	Purple	P54	15	54	1 5/8
SCL250-X	250 kcmil	0.77	3.38	Yellow	P62	16	62	1 5/8
SCL300-X	300 kcmil	0.81	4.12	White	P66	17	66	2
SCL350-X	350 kcmil	0.88	4.12	Red	P71	18	71	2
SCL400-6	400 kcmil	0.95	4.37	Blue	P76	19	76	2 1/8
SCL500-6	500 kcmil	1.06	4.62	Brown	P87	20	87	2 1/4
SCL600-6	600 kcmil	1.19	5.5	Green	P94	22	94	2 11/16
SCL750-6	750 kcmil	1.3	5.87	Black	P106	24	106	2 7/8
SCL1000-3	1000 kcmil	1.5	6.12	White	P125	27	125	3

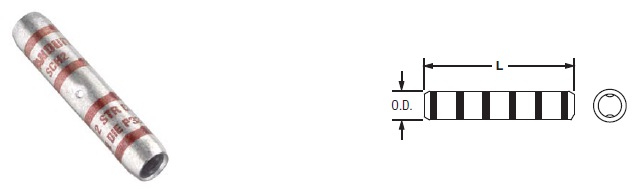

Code Conductor, Long Barrel with Corona Relief Taper Splice

Type SCH

Part Number	Copper Conductor Size	Barrel O.D.	L	Panduit Color Code	Panduit Die Index No.‡	Burndy Die Index No.‡	T&B Die Index No.‡	Wire Strip Length
SCH6-L	#6 AWG	0.31	1.97	Blue	P24	7	24	15/16
SCH4-L	#4 AWG	0.38	1.97	Gray	P29	8	29	15/16
SCH2-Q	#2 AWG	0.42	2.13	Brown	P33	10	33	1
SCH1-E	#1 AWG	0.47	2.13	Green	P37	11	37	1
SCH1/0-X	1/0 AWG	0.52	2.13	Pink	P42	12	42	1
SCH2/0-X	2/0 AWG	0.58	2.28	Black	P45	13	45	1 1/16
SCH3/0-X	3/0 AWG	0.64	2.47	Orange	P50	14	50	1 3/16
SCH4/0-X	4/0 AWG	0.71	2.54	Purple	P54	15	54	1 3/16
SCH250-X	250 kcmil	0.77	2.63	Yellow	P62	16	62	1 1/4
SCH300-X	300 kcmil	0.82	2.69	White	P66	17	66	2
SCH350-X	350 kcmil	0.88	2.84	Red	P71	18	71	2
SCH500-6	500 kcmil	1.06	3.53	Brown	P87	20	87	2 1/4
SCH750-6	750 kcmil	1.3	4.28	Black	P106	24	106	2 7/8
SCH1000-3	1000 kcmil	1.5	5.06	White	P125	27	125	3

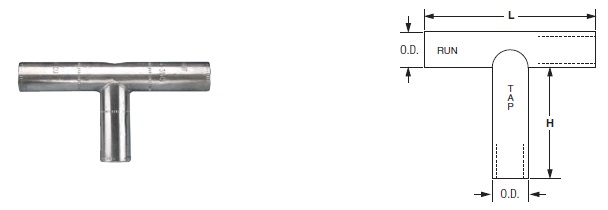

Code Conductor, Long Barrel, T Splice

Type SCT

Part Number	Copper Conductor Size		Run O.D.	Tap O.D.	Figure Dimensions		Panduit Color Code and Die Index No.‡		Wire Strip Length (In.)
	Run	Tap			H	L	Run	Tap	Run	Tap
SCT2-2	#2 AWG	#2 AWG	0.42	0.42	1.5	3.88	Brown P33	Brown P33	2	1 9/16
SCT1/0-1/0	1/0 AWG	1/0 AWG	0.51	0.51	1.5	4	Pink P42	Pink P42	2 1/16	1 9/16
SCT2/0-2/0	2/0 AWG	2/0 AWG	0.56	0.56	1.5	4	Black P45	Black P45	2 1/16	1 9/16
SCT4/0-1/0	4/0 AWG	1/0 AWG	0.69	0.51	1.5	4	Purple P54	Pink P42	2 1/16	1 9/16
SCT4/0-4/0	4/0 AWG	4/0 AWG	0.69	0.69	1.63	4.19	Purple P54	Purple P54	2 1/8	1 11/16
SCT250-250	250 kcmil	250 kcmil	0.75	0.75	1.63	4.25	Yellow P62	Yellow P62	2 13/16	1 11/16
SCT300-300	300 kcmil	300 kcmil	0.81	0.81	2	5.44	White P66	White P66	2 13/16	2 1/16
SCT350-350	350 kcmil	350 kcmil	0.88	0.88	2	5.5	Red P71	Red P71	2 13/16	2 1/16
SCT500-4/0	500 kcmil	4/0 AWG	1.06	0.69	2.25	5.81	Brown P87	Purple P54	2 15/16	2 5/16
SCT500-500	500 kcmil	500 kcmil	1.06	1.06	2.5	6.06	Brown P87	Brown P87	3 1/8	2 9/16

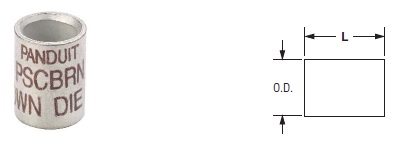

Code Conductor, Color-Coded Parallel Splice

Type PSC

Part Number	Figure Dimensions (In.)		Panduit Color Code	Panduit Die Index No.‡	Wire Strip Length (In.)
	Barrel O.D.	L
PSCRED-L	0.27	0.5	Red	P21	7/16
PSCBLU-L	0.31	0.5	Blue	P24	7/16
PSCGRY-L	0.38	0.5	Gray	P29	7/16
PSCBRN-L	0.47	0.62	Brown	P33	11/16
PSCGRN-L	0.52	0.62	Green	P37	11/16
PSCPNK-L	0.58	0.62	Pink	P42	11/16
PSCBLK-Q	0.64	0.81	Black	P45	7/8
PSCORG-Q	0.71	0.81	Orange	P50	7/8
PSCPUR-Q	0.77	0.88	Purple	P54	1
PSCYEL-Q	0.81	1.05	Yellow	P62	1 1/16

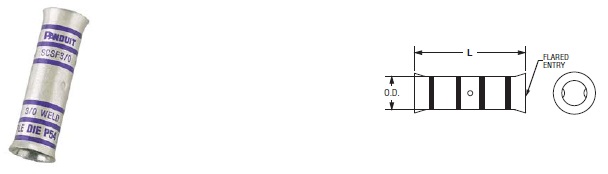

Flex Conductor, Standard Barrel, Flared, NEBS Butt Splice

Type SCSF

Part Number	Flex Conductor Size		Figure Dimensions(In.)		Panduit Color Code	Panduit Die Index No.‡	Wire Strip Length
	Class K and M	Diesel Locomotive	Barrel O.D.	L
SCSF8-L	—	#8 AWG	0.27	1.5	Red	P21	2/3
SCSF6-L	#6 AWG	#6 AWG	0.31	1.75	Blue	P24	13/16
SCSF4-L	#4 AWG	#4 AWG	0.38	1.75	Gray	P29	13/16
SCSF2-E	#2 AWG	#2 AWG	0.47	1.87	Brown	P33	7/8
SCSF1-X	#1 AWG	#1 AWG	0.52	1.87	Pink	P42	7/8
SCSF1/0-X	1/0 AWG	1/0 AWG	0.58	2.5	Black	P45	1  3/16
SCSF2/0-X	2/0 AWG	2/0 AWG	0.64	2.5	Orange	P50	1  3/16
SCSF3/0-X	3/0 AWG	3/0 AWG	0.71	2.5	Purple	P54	1  3/16
SCSF4/0-X	4/0 AWG	4/0 AWG	0.77	2.5	Yellow	P62	1  3/16
SCSF250-X	250 kcmil	262.6 kcmil	0.88	2.5	White	P66	1  3/16
SCSF300-6	300 kcmil	313.1 kcmi	0.95	2.56	Red	P71	1 1/4
SCSF350-6	350 kcmil	373.7 kcmi	1.06	2.94	Blue	P76	1 1/2

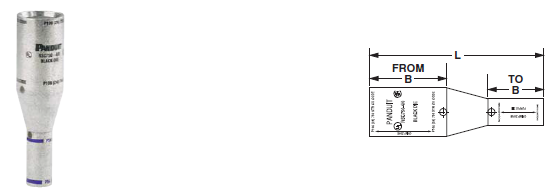

Code/Flex Conductor, with Window, In-Line Reducing Splice

Type RSC

Part Number		Copper Conductor Size	Figure Dimensions(In.)		Panduit Color Code	Panduit Die Index No.‡	Burndy Die Index No.‡	T&B Die Index No.‡	Wire Strip Length (In.)
			B	L
RSC4-6-L	Reduces From	#4 – 3 AWG STR,#2 AWG SOL	1.05	2.54	Gray	P29	8	29	1
	Reduces To	#6 AWG	1.38		Blue	P24	7	24	1  5/16
RSC2-6-Q	Reduces From	#2 AWG	1.05	2.62	Brown	P33	10	33	1
	Reduces To	#6 AWG	1.38		Blue	P24	7	34	1  5/16
RSC2-4-Q	Reduces From	#2 AWG	1.05	2.50	Brown	P33	10	33	1
	Reduces To	#4 – 3 AWG STR,#2 AWG SOL	1.38		Gray	P29	8	29	1  5/16
RSC1/0-6-X	Reduces From	1/0 AWG	1.05	2.81	Pink	P42	12	42	1
	Reduces To	#6 AWG	1.38		Blue	P24	7	24	1  5/16
RSC1/0-4-X	Reduces From	1/0 AWG	1.05	2.70	Pink	P42	12	42	1
	Reduces To	#4 – 3 AWG STR,#2 AWG SOL	1.38		Gray	P29	8	29	1  5/16
RSC2/0-6-X	Reduces From	2/0 AWG	1.13	2.99	Black	P45	13	45	1  1/16
	Reduces To	#6 AWG	1.38		Blue	P24	7	24	1  5/16
RSC2/0-4-X	Reduces From	2/0 AWG	1.13	2.88	Black	P45	13	45	1  1/16
	Reduces To	#4 – 3 AWG STR,#2 AWG SOL	1.38		Gray	P29	8	29	1  5/16
RSC4/0-6-X	Reduces From	4/0 AWG	1.13	3.24	Purple	P54	15	54	1  1/16
	Reduces To	#6 AWG	1.38		Blue	P24	7	24	1  5/16
RSC4/0-4-X	Reduces From	4/0 AWG	1.13	3.12	Purple	P54	15	54	1  1/16
	Reduces To	#4 – 3 AWG STR,#2 AWG SOL	1.38		Gray	P29	8	29	1  5/16
RSC4/0-1/0-X	Reduces From	4/0 AWG	1.16	3.13	Purple	P54	15	54	1  1/16
	Reduces To	1/0 AWG	1.63		Pink	P42	12	42	1  9/16
RSC4/0-2/0-X	Reduces From	4/0 AWG	1.16	2.90	Purple	P54	15	54	1  1/16
	Reduces To	2/0 AWG	1.5		Black	P45	13	45	1  7/16
RSC500-X4/0-6	Reduces From	500 kcmil	1.94	3.97	Brown	P87	20	87	1 7/8
	Reduces To	4/0 Flex	1.5		Yellow	P62	16	62	1  7/16
RSC500-X350-6	Reduces From	500 kcmil	1.94	4.38	Brown	P87	20	87	1 7/8
	Reduces To	350 Flex	1.94		Blue	P76	19	76	1 7/8
RSC750-4/0-6	Reduces From	750 kcmil	2.06	4.66	Black	P106	24	106	2
	Reduces To	4/0 AWG	1.5		Purple	P54	15	54	1 5/8
RSC750-X4/0-6	Reduces From	750 kcmil	2.06	4.54	Black	P106	24	106	2
	Reduces To	4/0 Flex	1.5		Yellow	P62	16	62	1  7/16
RSC750-X350-6	Reduces From	750 kcmil	2.06	4.45	Black	P106	24	106	2
	Reduces To	350 Flex	1.94		Blue	P76	19	76	1 7/8
RSC750-500-6	Reduces From	750 kcmil	2.06	4.45	Black	P106	24	106	2
	Reduces To	500 kcmil	1.94		Brown	P87	20	87	1 7/8
RSC750-X500-6	Reduces From	750 kcmil	2.06	4.63	Black	P106	24	106	2
	Reduces To	500 Flex	2.06		Pink	P99	400	99	2
RSC750-750-6	Reduces From	750 kcmil	2.06	4.63	Black	P106	24	106	2
	Reduces To	750 kcmil	2.06		Black	P106	24	106	2
RSCX750-4/0-3	Reduces From	750 Flex	2.06	5.04	Yellow	P115	115	115	2
	Reduces To	4/0 AWG	1.5		Purple	P54	15	54	1 5/8
RSCX750-750-3	Reduces From	750 Flex	2.06	4.50	Yellow	P115	115	115	2
	Reduces To	750 kcmil	2.06		Black	P106	24	106	2
