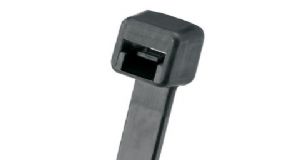

PANDUIT Pan-Ty® Cable Ties – Weather Resistant Nylon 6.6
概述
• Greater resistance to damage caused by ultraviolet light – indoor or outdoor use• Versatile cable ties can be used in countless applications
• One-piece construction for consistent performance and reliability
• Lowest threading force of any one-piece cable tie in the industry
• Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
| Part Number | Length | Width | Thickness | Max. Bundle Dia. |
Min. Loop Tensile Str. |
Recommended Installation Tool |
|||||||
| In. | mm | In. | mm | In. | mm | In. | mm | Lbs. | N | ||||
| PLT.6SM-C0 | 2.8 | 71 | 0.070 | 1.8 | 0.030 | 0.8 | 0.60 | 15 | 8 | 36 | GTS, GTSL, PTS | ||
| PLT.7M-M0 | 3.1 | 79 | 0.090 | 2.3 | 0.032 | 0.8 | 0.68 | 17 | 18 | 80 | GTS, GTSL, GS2B, PTS, PPTS, STS2 | ||
| PLT1M-C0 | 3.9 | 99 | 0.098 | 2.5 | 0.043 | 1.1 | 0.87 | 22 | 18 | 80 | |||
| PLT1.5M-C0 | 5.6 | 142 | 0.098 | 2.5 | 0.043 | 1.1 | 1.25 | 32 | 18 | 80 | |||
| PLT2M-C0 | 8.0 | 203 | 0.098 | 2.5 | 0.043 | 1.1 | 2.00 | 51 | 18 | 80 | |||
| PLT1.5I-C0 | 5.6 | 142 | 0.142 | 3.6 | 0.045 | 1.1 | 1.38 | 35 | 40 | 178 | GTS, GTSL, GS2B, PTS, PPTS, STS2 | ||
| PLT2I-C0 | 8.0 | 203 | 0.142 | 3.6 | 0.045 | 1.1 | 2.00 | 51 | 40 | 178 | |||
| PLT2.5I-C0 | 9.7 | 246 | 0.145 | 3.7 | 0.052 | 1.3 | 2.50 | 64 | 40 | 178 | |||
| PLT3I-C0 | 11.4 | 290 | 0.145 | 3.7 | 0.052 | 1.3 | 3.00 | 76 | 40 | 178 | |||
| PLT4I-C0 | 14.5 | 368 | 0.145 | 3.7 | 0.052 | 1.3 | 4.00 | 102 | 40 | 178 | |||
| PLT1S-C0 | 4.8 | 122 | 0.190 | 4.8 | 0.052 | 1.3 | 1.00 | 25 | 50 | 222 |
GTS, GTSL, GS2B, GTH, GS4H, PTS, PTH, PPTS,
STS2, STH2
|
||
| PLT1.5S-C0 | 6.2 | 157 | 0.190 | 4.8 | 0.052 | 1.3 | 1.50 | 38 | 50 | 222 | |||
| PLT2S-C0 | 7.4 | 188 | 0.190 | 4.8 | 0.052 | 1.3 | 1.88 | 48 | 50 | 222 | |||
| PLT2.5S-C0 | 9.8 | 249 | 0.190 | 4.8 | 0.052 | 1.3 | 2.50 | 64 | 50 | 222 | |||
| PLT3S-C0 | 11.5 | 292 | 0.190 | 4.8 | 0.052 | 1.3 | 3.00 | 76 | 50 | 222 | |||
| PLT4S-C0 | 14.5 | 368 | 0.190 | 4.8 | 0.052 | 1.3 | 4.00 | 102 | 50 | 222 | |||
| PLT4.5S-C0 | 15.5 | 394 | 0.190 | 4.8 | 0.052 | 1.3 | 4.50 | 114 | 50 | 222 | |||
| PLT5S-C0 | 17.5 | 445 | 0.190 | 4.8 | 0.052 | 1.3 | 5.00 | 127 | 50 | 222 | |||
| PLT2H-L0 | 8.1 | 206 | 0.300 | 7.6 | 0.075 | 1.9 | 2.00 | 51 | 120 | 534 | GTH, GS4H, GS4EH, PTH, STH2, ST3EH | ||
| PLT2.5H-L0 | 9.8 | 251 | 0.300 | 7.6 | 0.075 | 1.9 | 2.50 | 64 | 120 | 534 | |||
| PLT3H-L0 | 11.4 | 290 | 0.300 | 7.6 | 0.075 | 1.9 | 3.00 | 76 | 120 | 534 | |||
| PLT4H-L0 | 14.5 | 368 | 0.300 | 7.6 | 0.075 | 1.9 | 4.00 | 102 | 120 | 534 | |||
| PLT6LH-L0 | 21.9 | 556 | 0.300 | 7.6 | 0.075 | 1.9 | 6.00 | 152 | 120 | 534 | |||
| PLT7LH-L0 | 24.7 | 627 | 0.300 | 7.6 | 0.075 | 1.9 | 7.00 | 178 | 120 | 534 | |||
| PLT8LH-L0 | 27.6 | 701 | 0.300 | 7.6 | 0.075 | 1.9 | 8.00 | 203 | 120 | 534 | |||
| PLT9LH-L0 | 30.5 | 775 | 0.300 | 7.6 | 0.075 | 1.9 | 9.00 | 229 | 120 | 534 | |||
| PLT5H-L0 | 17.7 | 450 | 0.350 | 8.9 | 0.078 | 2.0 | 5.00 | 127 | 175 | 778 | GTH, GS4H, GS4EH, PTH, STH2, ST3EH | ||
| PLT6H-L0 | 20.9 | 530 | 0.350 | 8.9 | 0.078 | 2.0 | 6.00 | 152 | 175 | 778 | |||
| PLT8H-L0 | 30.6 | 779 | 0.350 | 8.9 | 0.078 | 2.0 | 9.00 | 229 | 175 | 778 | |||
| PLT13H-Q0 | 43.3 | 1100 | 0.350 | 8.9 | 0.078 | 2.0 | 13.00 | 330 | 175 | 778 | |||
