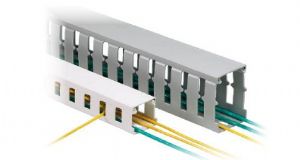

PANDUIT Panduct® NNC型无卤素公制线槽
概述
- 材料：无铝塑改良PPO材料，已通过IEC60754-2测试（对于电缆线燃烧时所释放烟气的测试）
- UL认可的持续使用温度：203°F (95°C)
- 阻燃性等级为UL94V-0
- 符合NFPA79-2007第13.3.1条关于阻燃材料的要求
- 有DIN43659安装孔
- 公制尺寸和隔栅间隔
| Part Number | Duct Size W x H | Slot Width |
Cover
Part Number
|
||
| In. | mm | In. | mm | ||
| NNC25X25LG2 | 24.6x23.6 | 0.97x0.93 | 0.39 | 10.0 | NC25LG2 |
| NNC25X37LG2 | 24.6x35.8 | 0.97x1.41 | 0.39 | 10.0 | NC25LG2 |
| NNC25X50LG2 | 25.1x47.8 | 0.99x1.88 | 0.39 | 10.0 | NC25LG2 |
| NNC25X75LG2 | 24.6x72.4 | 0.97x2.85 | 0.39 | 10.0 | NC25LG2 |
| NNC37X37LG2 | 37.1x35.8 | 1.46x1.41 | 0.39 | 10.0 | NC37LG2 |
| NNC37X50LG2 | 37.1x47.8 | 1.46x1.88 | 0.39 | 10.0 | NC37LG2 |
| NNC37X75LG2 | 37.1x72.4 | 1.46x2.85 | 0.39 | 10.0 | NC37LG2 |
| NNC50X50LG2 | 49.5x47.8 | 1.95x1.88 | 0.39 | 10.0 | NC50LG2 |
| NNC50X75LG2 | 49.5x72.4 | 1.95x2.85 | 0.39 | 10.0 | NC50LG2 |
| NNC50X100LG2 | 49.5x97.8 | 1.95x3.85 | 0.39 | 10.0 | NC50LG2 |
| NNC75X75LG2 | 75.4x72.4 | 2.97x2.85 | 0.39 | 10.0 | NC75LG2 |
| NNC100X50LG2 | 99.6x47.8 | 3.92x1.88 | 0.39 | 10.0 | NC100LG2 |
| NNC100X75LG2 | 99.6x72.4 | 3.92x2.85 | 0.39 | 10.0 | NC100LG2 |
| NNC100X100LG2 | 99.6x97.8 | 3.92x3.85 | 0.39 | 10.0 | NC100LG2 |
