PANDUIT 线束板系统和装置
概述
为线束制造商提供的革命性模块化解决方案

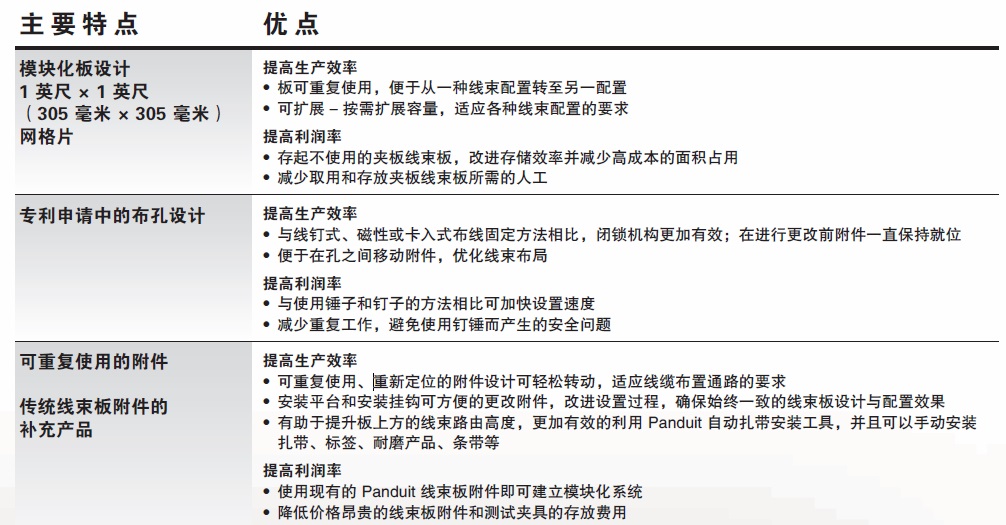

这一可重复使用的模块化解决方案中含有1 英尺× 1 英尺（305 毫米 × 305 毫米）的网格片，以及经专门设计可以重新定位的附件，可将线束组件的生产效率提高18%。与线钉式、磁性或卡入式布线固定方法相比，Quick-Build™附件更加有效。附件可以方便的旋转并锁定到位，便于用户更改，加快缆线的布置速度并提高设计的灵活性。

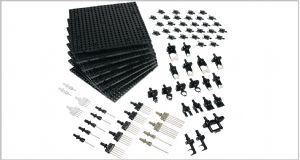

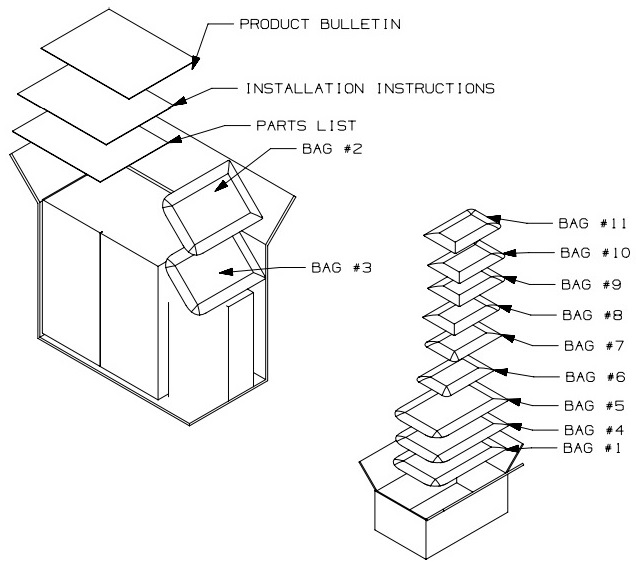

Quick-Build Starter Kit1 List of Components
| Panduit Part Number | Description |
QTY OF
INDIVIDUAL PARTS INCLUDED
IN KIT
|
PACKAGE
IDENTIFIER
|
|
| Main Quick-Build Components | ||||
|

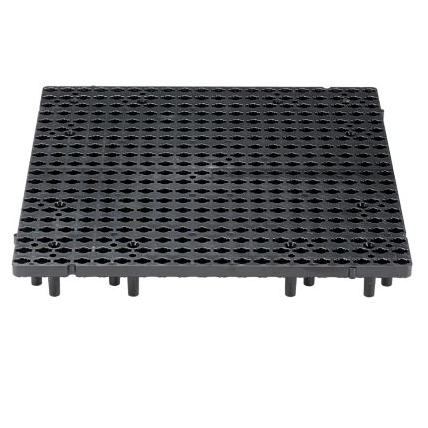

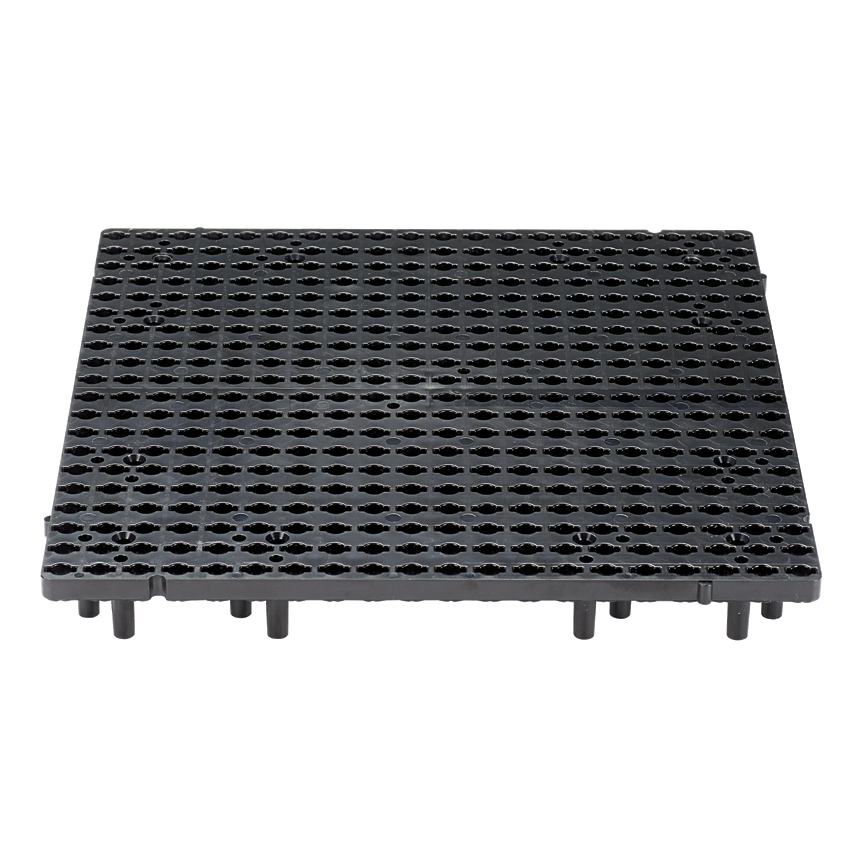

QB-TILE(8/PK) | 1' X 1' (305mm x 305mm) square base component | 8 | BOX #1 |
|

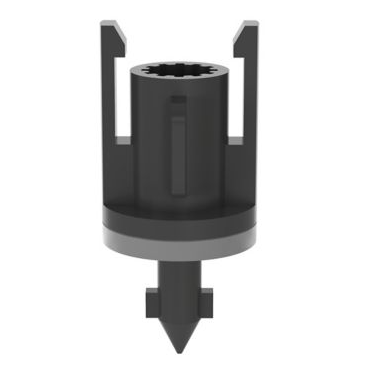

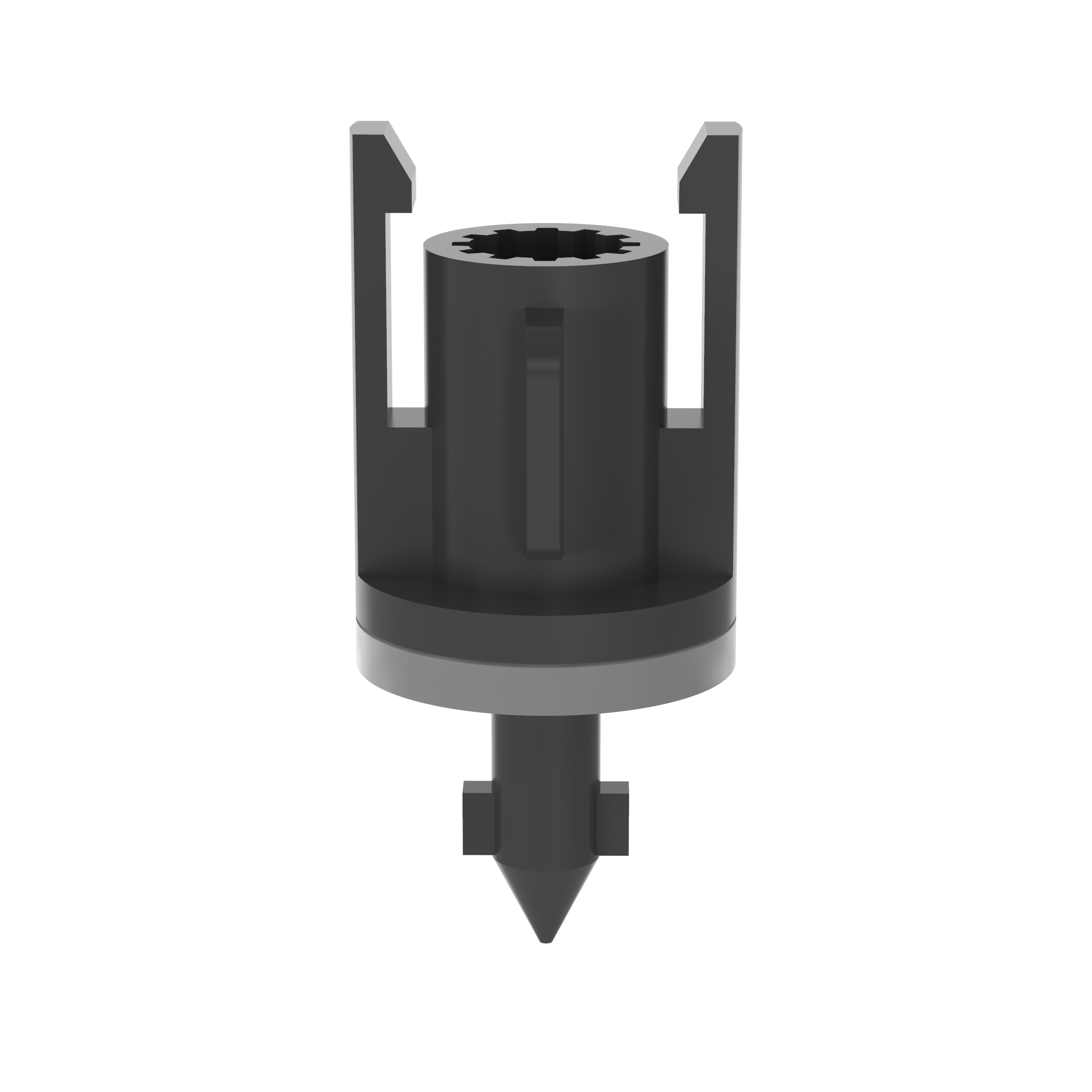

QB-MOUNT-L | Peg can be positioned and relocated. | 30 | BOX #1 |
| Quick-Build Mounting Platforms | ||||
|

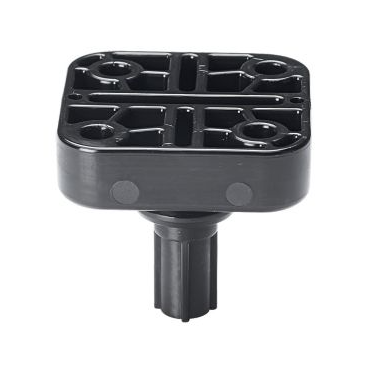

QB-BASE175-Q | 1-3/4" Mounting Base for #6,#8, and 1/4" Screws | 10 | BOX #2 |
|
QB-BASE120-Q | 1.2" Mounting Base for #8 Screws | 10 | BOX #3 |
| Traditional Harness Board Accessories | ||||
|

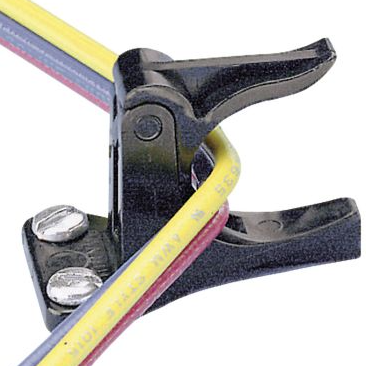

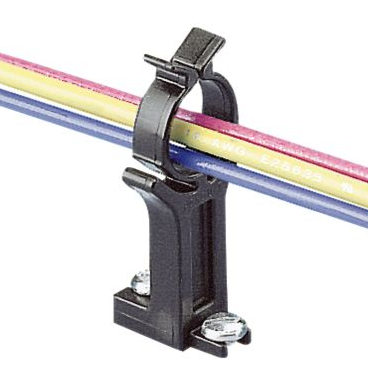

BR.5-E6-C | 1/2" Bundle Retainer | 2 | BOX #4 |
|
BR.75-E6-C | 3/4" Bundle Retainer | 4 | |
|
CPH.75-S8-X | 3/4" Corner Post | 2 | |
|

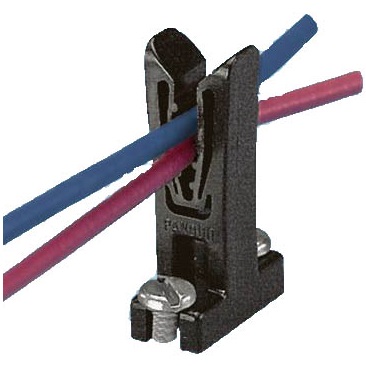

WEH-E8-C | Wire End Holder | 10 | |
|

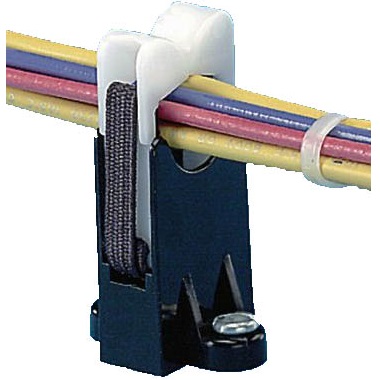

RER.5-S6-X | 1/2" Elastic Retainer | 3 | |
|
RER.75-S6-X | 3/4" Elastic Retainer | 3 | |
|
RER1.25-S6-X | 1-1/4" Elastic Retainer | 2 | |
|

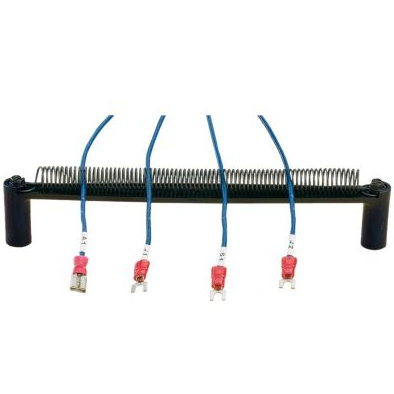

PBSC1-X | 1" Spring | 1 | BOX #8 |
|
SHH1-S8-X | 1" Spring Holder | 1 | |
|

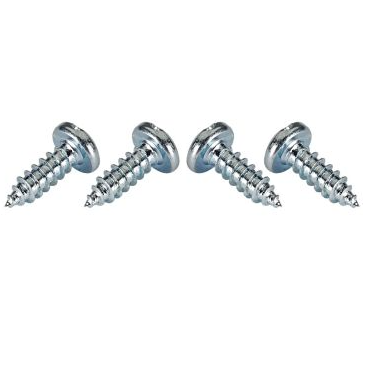

QB-S6-500-C | Quick-Build #6 Screw 1/2" Long | 28 | BOX #9 |
|
|
QB-S8-500-C | Quick-Build #8 Screw 1/2" Long | 24 | BOX #10 |
|
QB-S8-750-C | Quick-Build #8 Screw 3/4" Long(for Test Fixtures) | 10 | BOX #11 |
| Nails and Nail Bases | ||||
|
HBN1-T | 1" Nail | 12 | BOX #5 |
|
QB-FN1-Q | Five Nail Holder for 1" Nail | 2 | |
|
QB-SN1-Q | Single Nail Holder for 1" Nail | 2 | |
|
HBN2-T | 2" Nail | 30 | BOX #6 |
|
QB-FN2-Q | Five Nail Holder for 2" Nail | 5 | |
|
QB-SN2-Q | Single Nail Holder for 2" Nail | 5 | |
|
HBN3-T | 3" Nail | 12 | BOX #7 |
|
QB-FN3-Q | Five Nail Holder for 3" Nail | 3 | |
|
QB-SN3-Q | Single Nail Holder for 3" Nail | 2 | |
QB-KIT2 Components
| Part Number |
Qty.
Included
|
Description |
Compatible
Harness Board Single Nail Part Number |
|
|
QB-TILE(8/PK) | 8 | 1' X 1' (305mm x 305mm) square base component that allows Quick-Build™ Mounting Pegs and platforms to create a modular harness system. One package includes 8 tiles. Black. | |
|

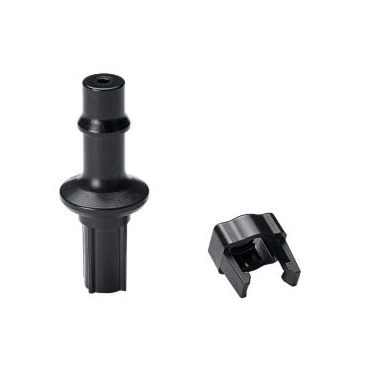

QB-MOUNT-L | 35 | Peg can be positioned and relocated. Required for use with Quick-Build™ Nail Holders, Quick-Build™ Wire End Holders, Quick-Build™ Replaceable Elastic Retainers, and Quick-Build™ Mounting Platforms to provide a modular harness board system. Allows accessories to rotate as needed even after mounting peg is installed into grid tile. Black. | |
|

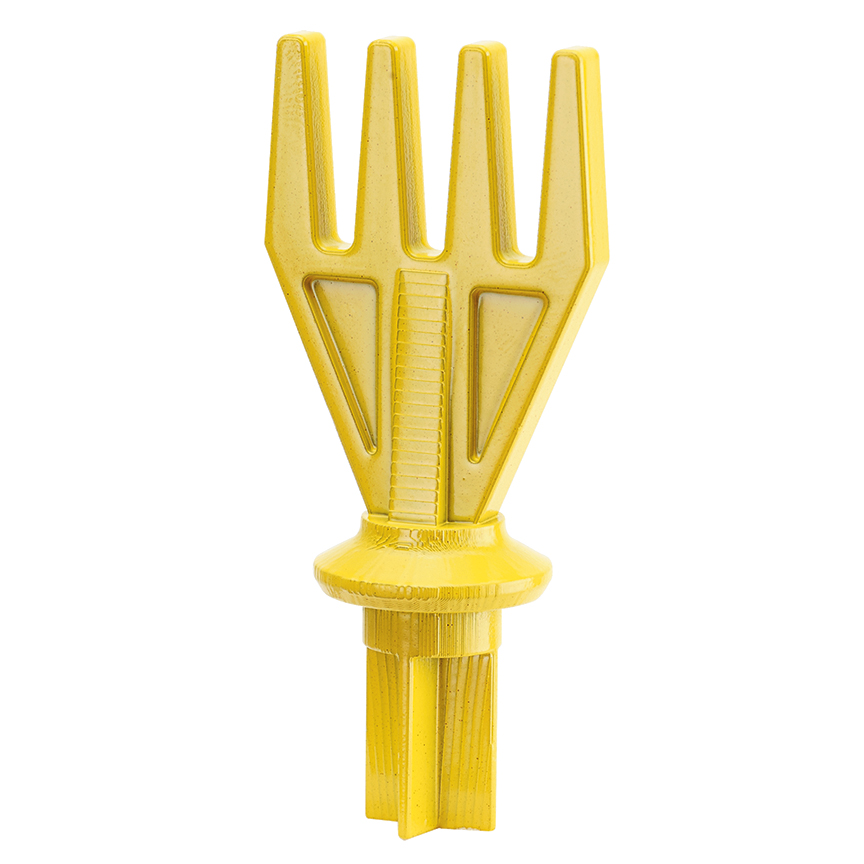

QB-WEH1012-Q | 10 |
Wire

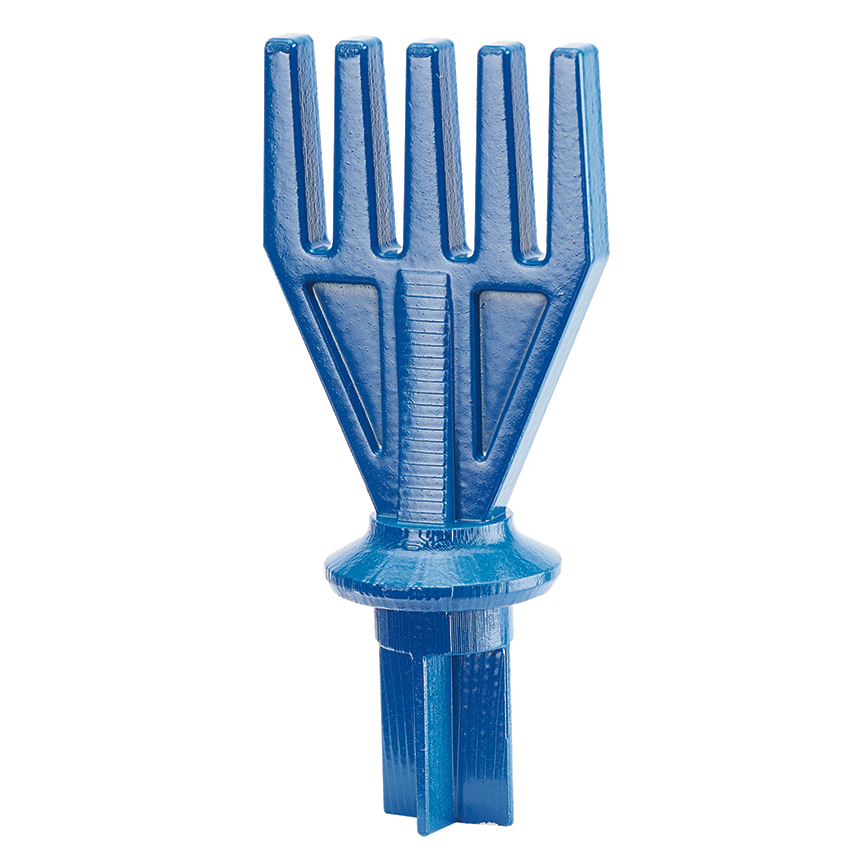

end holder for Quick-Build™ System. Suitable for #10 – #12 gauge wire. Holds three wires. Yellow. |
|
|
QB-WEH1416-Q | 10 |
Wire
end holder for Quick-Build™ System. Suitable for #14 – #16 gauge wire. Holds four wires. Blue. |
|
|

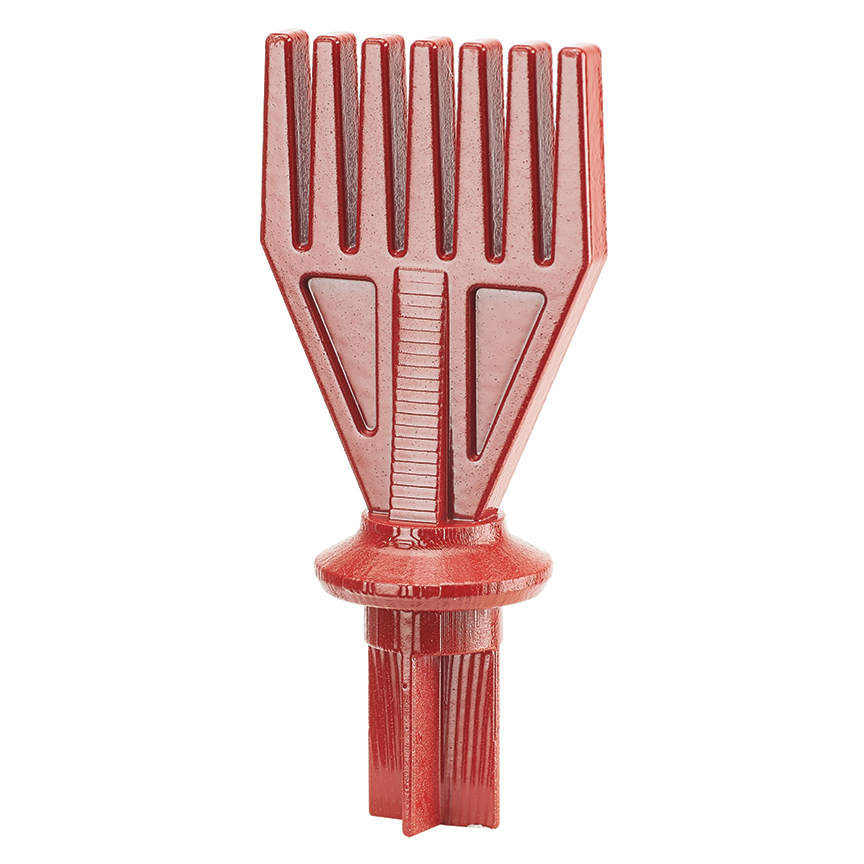

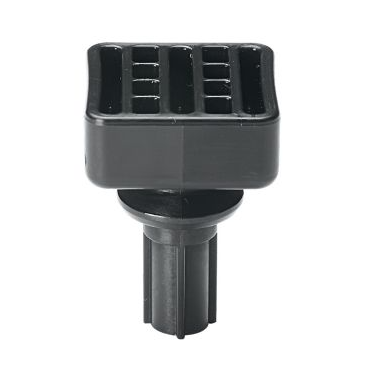

QB-WEH1822-Q | 10 |
Wire
end holder for Quick-Build™ System. Suitable for #18 – #22 gauge wire. Holds six wires. Red. |
|
|

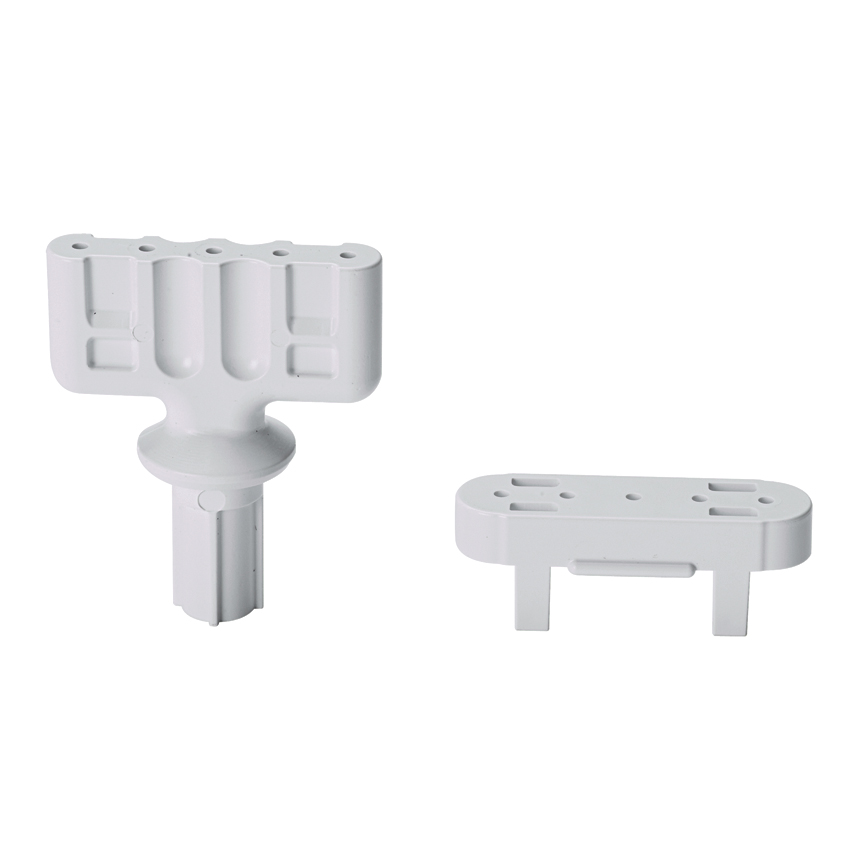

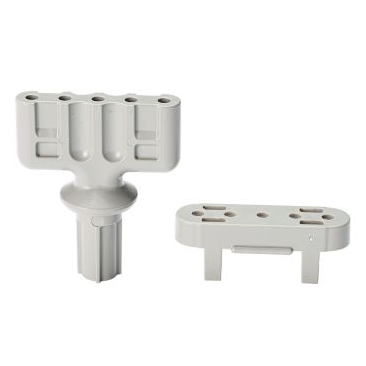

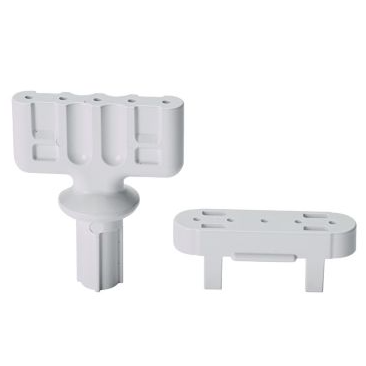

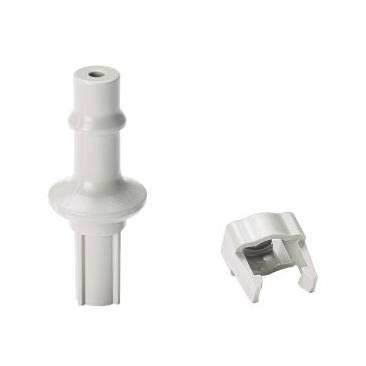

QB-FN1-Q | 2 | Five nail holder to accommodate up to five 1" nails. White. | HBN1-T |
|

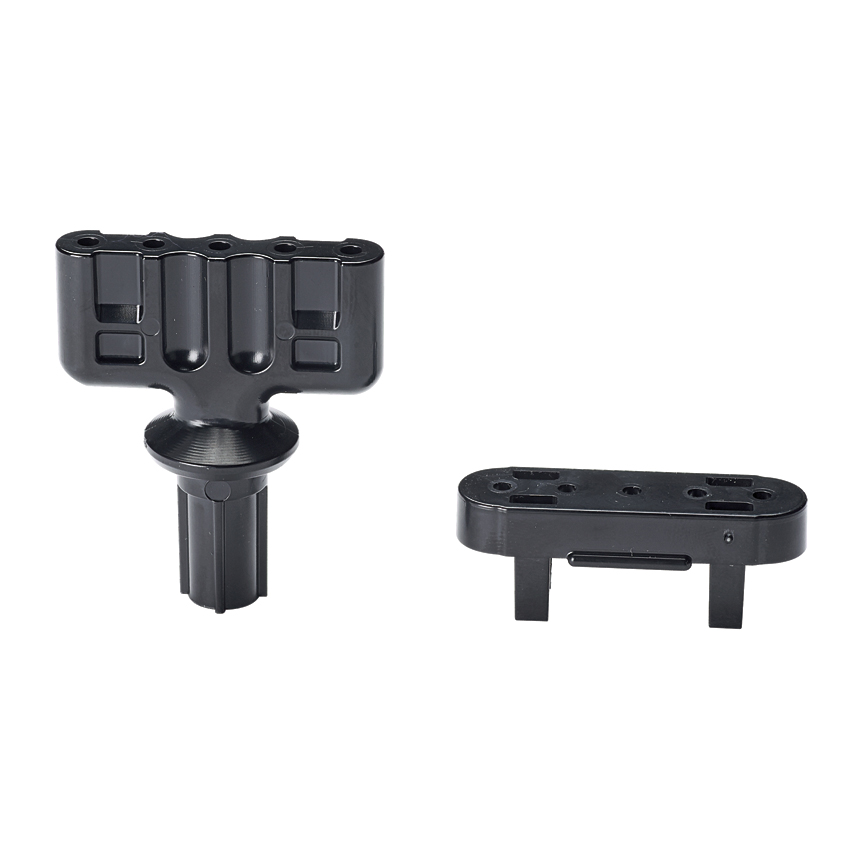

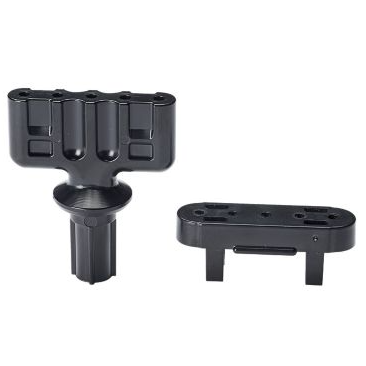

QB-FN2-Q | 5 | Five nail holder to accommodate up to five 2" nails. Black. | HBN2-T |
|

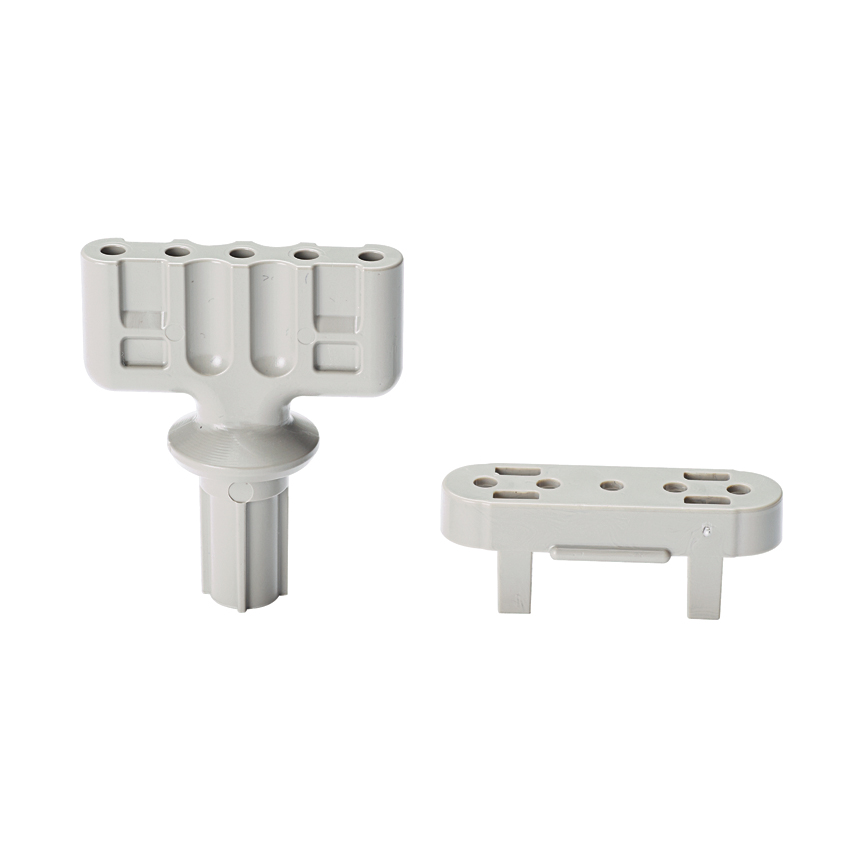

QB-FN3-Q | 2 | Five nail holder to accommodate up to five 3" nails. Gray. | HBN3-T |
|

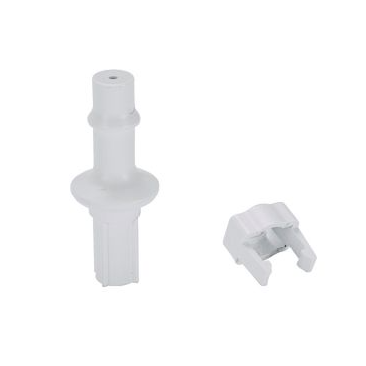

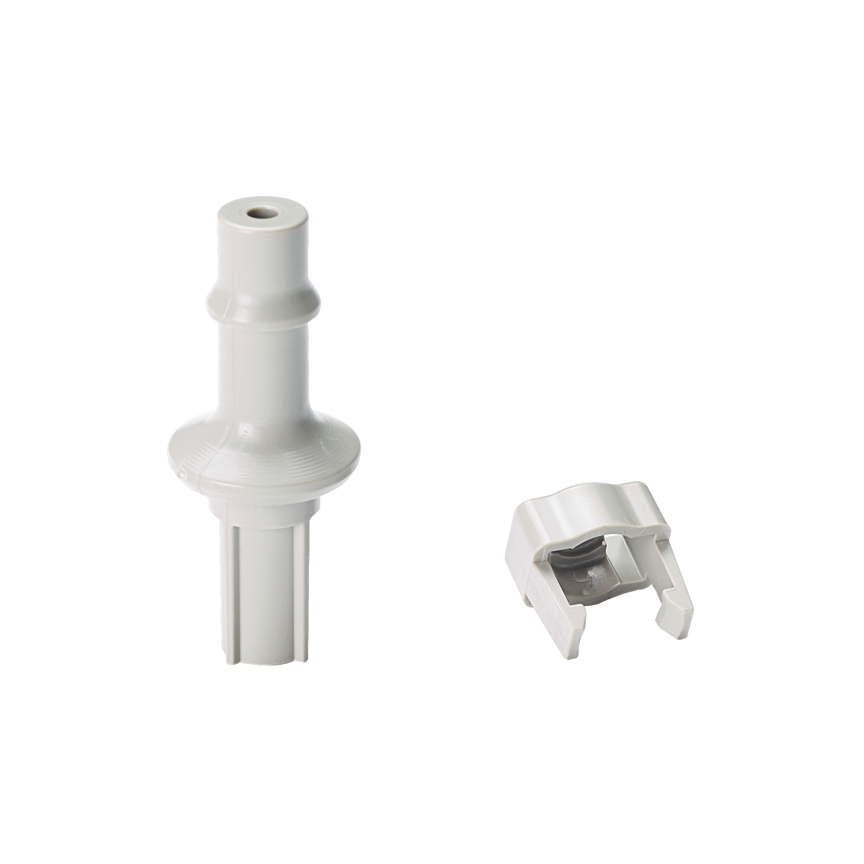

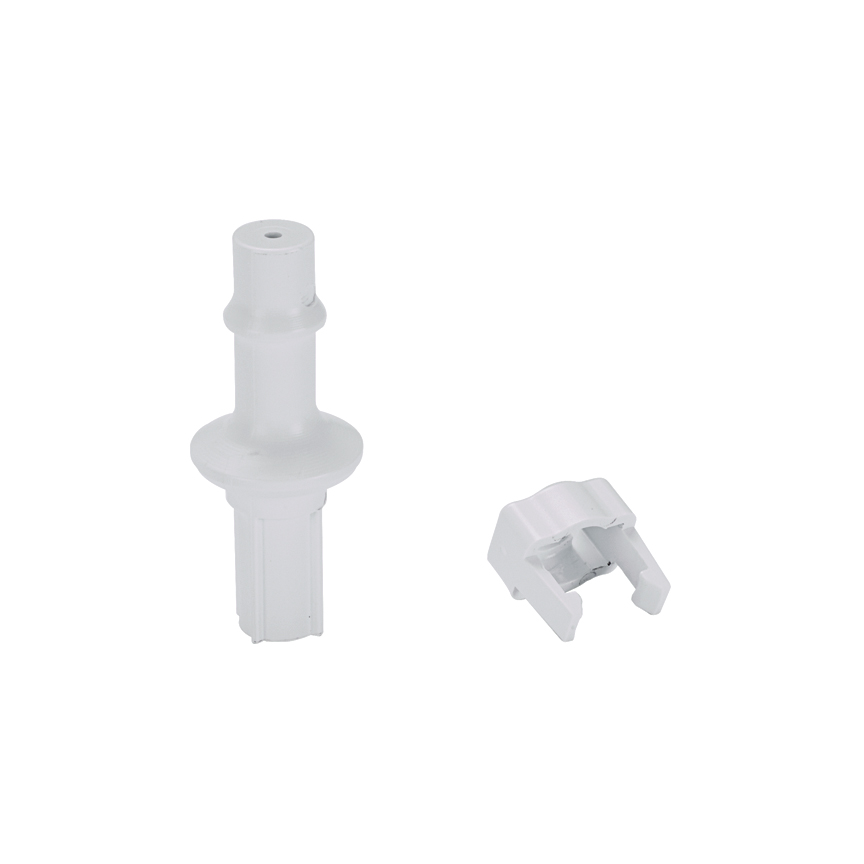

QB-SN1-Q | 2 | Single nail holder to accommodate one 1" nail. White | HBN1-T |
|

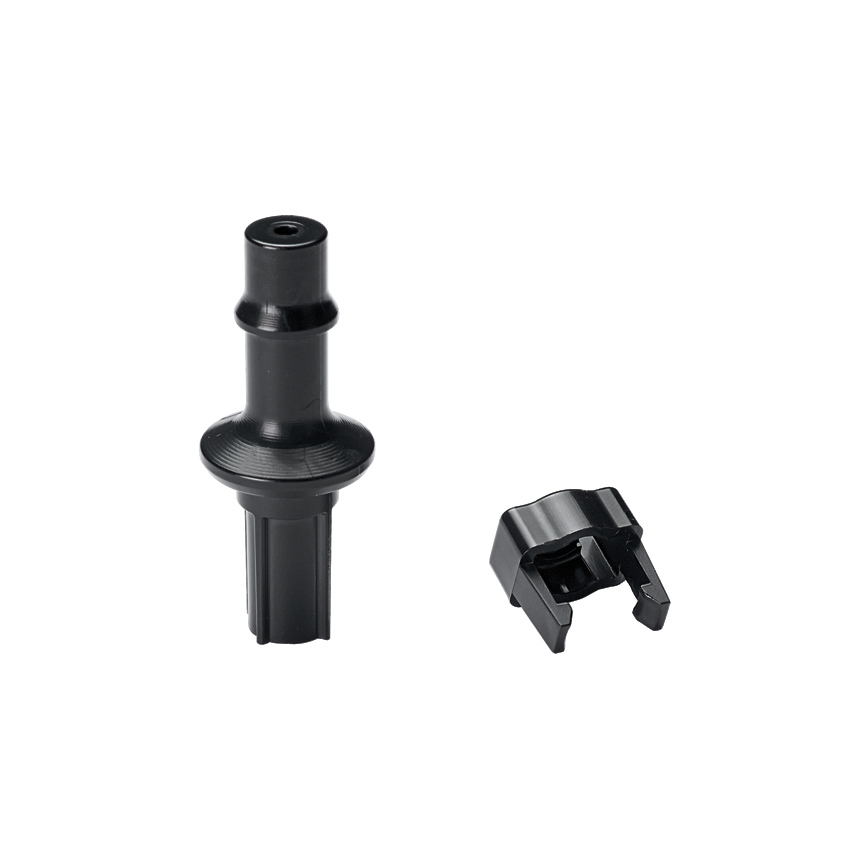

QB-SN2-Q | 5 | Single nail holder to accommodate one 2" nail. Black. | HBN2-T |
|
QB-SN3-Q | 2 | Single nail holder to accommodate one 3" nail. Gray. | HBN3-T |
|

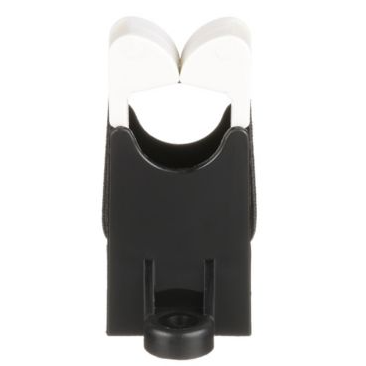

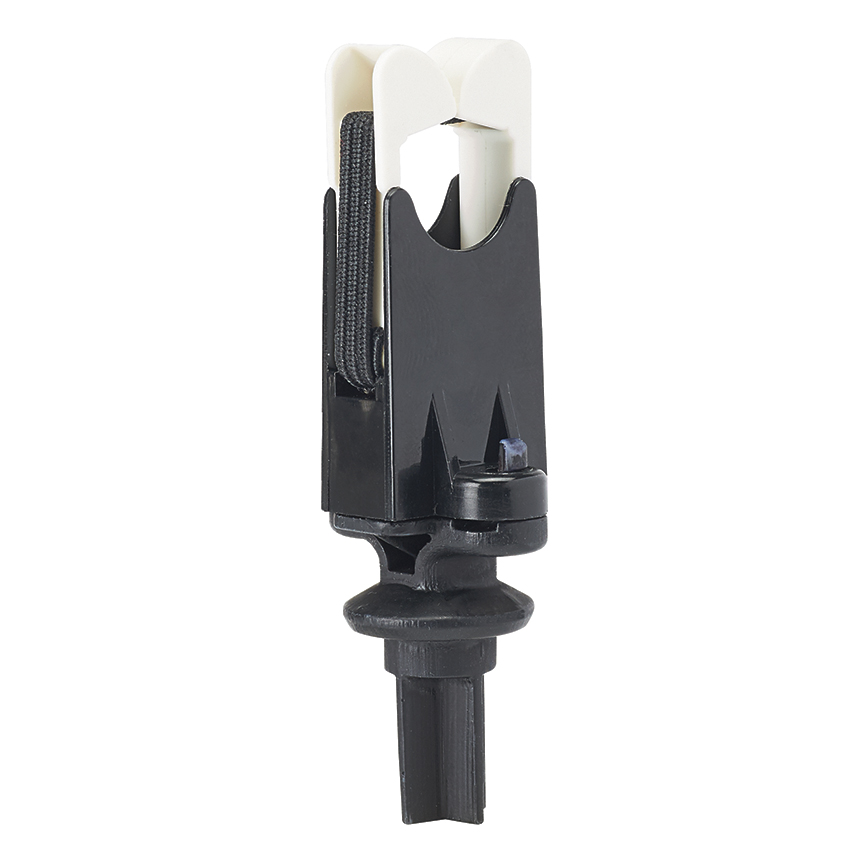

QB-RER.5-X | 3 | Quick-Build™ Peg with RER.5-S6-X pre-installed for use with Quick-Build™ System. Suitable for 1/2" bundle. | |
| QB-RER.75-X | 3 | Quick-Build™ Peg with RER.75-S6-X pre-installed for use with Quick-Build™ System. Suitable for 3/4" bundle. | ||
| QB-RER1.25-X | 2 | Quick-Build™ Peg with RER1.25-S6-X pre-installed for use with Quick-Build™ System. Suitable for 1.25" bundle. | ||
|

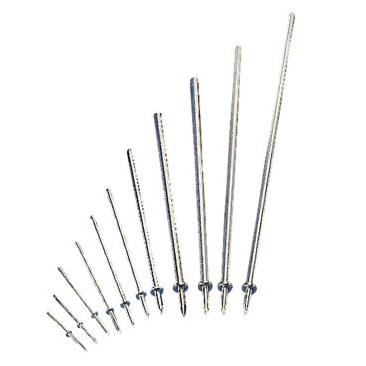

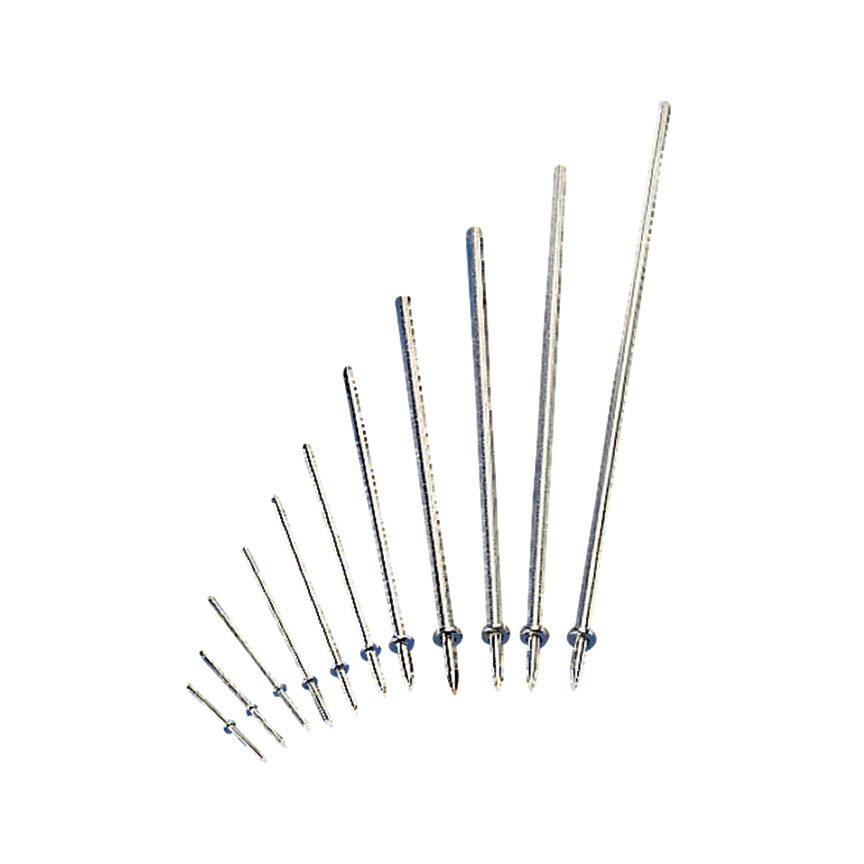

HBN1-T | 12 | Harness board nail – 1" long (1.65" overall). | QB-SN1-Q and QB-FN1-Q |
| HBN2-T | 30 | Harness board nail – 2" long (2.66" overall). | QB-SN2-Q and QB-FN2-Q | |
| HBN3-T | 12 | Harness board nail – 3" long (3.67" overall). | QB-SN3-Q and QB-FN3-Q |
