DELPHI Metri-Pack AOA体育(China)官方网站

概述

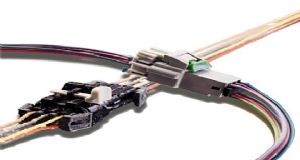

Delphi Metri-Pack Connection Systems utilize internationally standardized male blade sizes, allowing for flexibility in design. Blade sizes range from 1.5 mm to 8 mm with current capability ranging from 14 to 60 amps.

Metri-Pack Connectors are designed to be compatible with processing techniques such as automated pull-to-seat and push-to-seat assembly, dual-stage crimping, load cell crimp inspection and automated part identification and orientation. Delphi Metri-Pack Connector systems with silver interface platings pass the SAE® (Society of Automotive Engineers) J2030* Heavy-Duty Electrical Connector Standard.

Ideal for low energy electronic circuits or power circuit applications, the Metri-Pack product line includes:

  • High-performance interconnects in sealed or unsealed versions
  • Custom-engineered direct connections to motors, switches, sensors and other devices
  • Environmentally sealed electronic headers with current capacity of 14 amps, designed for service in severe environments
  • Junction blocks and electrical centers

Benefits

  • Pass SAE J2030* Heavy-Duty Electrical Connector Standard (with silver interface platings)
  • Extended product range offers significant design and application versatility
  • Used in high current to low energy circuits for electrical versatility
  • Strength and stability of terminals helps assure correct alignment
  • Utilizes internationally standard male blade sizes for design flexibility
  • Connector Position Assurance (CPA) and Terminal Position Assurance (TPA) for superior connection reliability
  • Sealed version for excellent resistance to temperature, chemicals and abrasion
  • Testing to SAEJ2030

Typical Applications

Metri-Pack Connection Systems are suited for use in flat blade connections for electronic through high current applications.

Application Guidelines

   150 Series
 280 Series
480 Series  630 Series  800 Series
Cable Range
Sealed
0.35 – 1.0 mm2
0.35 – 5.0 mm2 0.35 – 5.0 mm2 0.50 – 5.0 mm2 2.0 – 8.0 mm2
Cable Range
Unsealed
0.35 – 1.0 mm2 0.35 – 5.0 mm2 0.50 – 5.0 mm2 0.35 – 5.0 mm2 2.0 – 8.0 mm2
Current Range 0 – 14 amps 0 – 30 amps 0 – 42 amps 0 – 46 amps 0 – 60 amps
Temperature Range -40°C to 125°C -40°C to 125°C -40°C to 125°C -40°C to 125°C -40°C to 125°C
Resistance <10 mΩ@ 20mV <10m Ω@ 20mV <10 mΩ@ 20mV <10 mΩ@ 20mV <10 mΩ@ 20mV
Voltage Drop <10.0 mV/amp <3.0 mV/amp <3.0 mV/amp <3.0 mV/amp <3.0 mV/amp
Centerline Spacing
Unsealed
3.5 mm 5.0 mm 6.9 mm
8.5 mm  10.3 mm
Centerline Spacing
Sealed
6.0 mm 7.7 mm 9.5 mm
10.8 mm
14.0 mm
Blade Width 1.5 mm 2.8 mm 2.8 mm
6.3 mm
8.0 mm

The general application guidelines above are for reference only and may not account for all the variables that would be present in an actual application. For additional detailed product performance information, contact Delphi.
