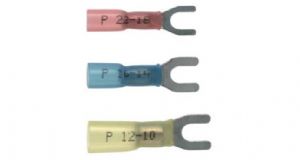

PANDUIT 热缩叉形端子
概述
• Heat shrink sleeving forms a protective barrier to provide environmentally sealed terminations ideal for highmoisture applications
• Fork design provides for fast and easy installation, without the need to remove fastener
• Brazed seam protects terminal barrel from splitting during the crimp process
• Heat shrink insulation is completed with a standard heat gun
• Minimum continuous operating temperature -65°F (-55°C)
• Maximum continuous operation temperature 230°F (110°C)
• Shrink temperature 300°F (150°C)
• UL and CSA rated up to 600 V per UL 486A/B
Recommended Installation Tool
CT-310
| Part | Wire Range | Color Code |
Max. Ins.
|
Stud Size | L | W | Wire Strip Length |
| PH18-6F-Q | 22-18 AWG | Red | 0.17 | #6 | 1.04 | 0.32 | 5/16 |
| PH18-8F-Q | 22-18 AWG | Red | 0.17 | #8 | 1.04 | 0.32 | 5/16 |
| PH18-10F-Q | 22-18 AWG | Red | 0.17 | #10 | 1.04 | 0.32 | 5/16 |
| PH14-6F-Q | 16-14 AWG | Blue | 0.19 | #6 | 1.07 | 0.38 | 5/16 |
| PH14-8F-Q | 16-14 AWG | Blue | 0.19 | #8 | 1.07 | 0.38 | 5/16 |
| PH14-10F-Q | 16-14 AWG | Blue | 0.19 | #10 | 1.07 | 0.38 | 5/16 |
| PH10-8F-E | 12-10 AWG | Yellow | 0.24 | #8 | 1.2 | 0.38 | 5/16 |
| PH10-10F-E | 12-10 AWG | Yellow | 0.24 | #10 | 1.2 | 0.38 | 5/16 |
