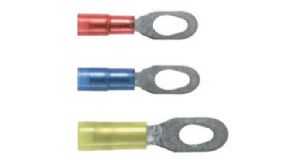

PANDUIT 多螺栓尼龙绝缘端子
概述
• Teardrop shaped mounting hole of multiple stud terminals permits use with #6, #8, or #10 size studs
• Ring tongue design assures a secure connection in high vibration applications
• Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
• UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
• UL and CSA rated up to 600 V per UL 486A/B
Recommended Installation Tool
CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡，CT-400
|
Part |
Wire Range |
Color Code |
Stock Thickness (In.) |
Max.Ins. |
Stud Size |
L |
W |
C |
|
PN18-610R-C |
22-18 AWG |
Red |
0.03 |
0.145 |
#6,#8,#10 |
0.95 |
0.31 |
0.25 |
|
PN14-610R-C |
16-14 AWG |
Blue |
0.03 |
0.165 |
#6,#8,#10 |
0.95 |
0.31 |
0.25 |
|
PN10-610R-L |
12-10 AWG |
Yellow |
0.04 |
0.225 |
#6,#8,#10 |
1.17 |
0.37 |
0.33 |
