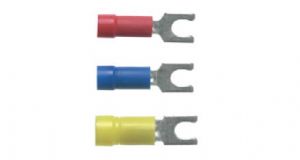

PANDUIT 乙烯绝缘短叉锁式端子
概述
• Locks in place for a secure connection in limited spaces• Fork design provides for fast and easy installation, without the need to remove fastener
• Insulation support helps to prevent wire damage in bending applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
• UL Flammability UL 94V-0, maximum insulation temperature 221°F (105°C)
• UL and CSA rated up to 600 V per UL 486A/B
Recommended Installation Tool
CT-1550,CT-1551,CT-2500
| Part | Wire Range | Color Code | Stock Thickness (In.) | Max. Ins. | Stud Size | L | W | C |
| PV18-5SLF-CY | 22-18 AWG | Red | 0.03 | 0.15 | #5 | 0.82 | 0.26 | 0.19 |
| PV18-6SLF-CY | 22-18 AWG | Red | 0.03 | 0.15 | #6 | 0.82 | 0.27 | 0.19 |
| PV18-8SLF-CY | 22-18 AWG | Red | 0.03 | 0.15 | #8 | 0.87 | 0.29 | 0.23 |
| PV18-10SLF-CY | 22-18 AWG | Red | 0.03 | 0.15 | #10 | 0.88 | 0.33 | 0.23 |
| PV14-5SLF-C | 16-14 AWG | Blue | 0.03 | 0.175 | #5 | 0.8 | 0.25 | 0.22 |
| PV14-6SLF-C | 16-14 AWG | Blue | 0.03 | 0.175 | #6 | 0.8 | 0.25 | 0.22 |
| PV14-8SLF-C | 16-14 AWG | Blue | 0.03 | 0.175 | #8 | 0.85 | 0.29 | 0.26 |
| PV14-10SLF-C | 16-14 AWG | Blue | 0.03 | 0.175 | #10 | 0.86 | 0.33 | 0.26 |
| PV14-14SLF-C | 16-14 AWG | Blue | 0.03 | 0.175 | 1/4" | 0.95 | 0.44 | 0.33 |
| PV10-5SLF-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #5 | 0.86 | 0.25 | 0.22 |
| PV10-6SLF-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #6 | 0.87 | 0.25 | 0.22 |
| PV10-8SLF-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #8 | 0.92 | 0.29 | 0.26 |
| PV10-10SLF-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #10 | 0.92 | 0.33 | 0.26 |
| PV10-14SLF-L | 12-10 AWG | Yellow | 0.04 | 0.225 | 1/4" | 1.02 | 0.45 | 0.33 |
