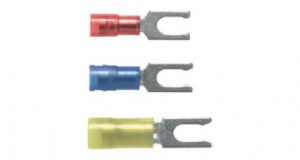

PANDUIT 漏斗口尼龙绝缘叉形锁式端子
概述
• Locks in place for secure connection• Fork design provides for fast and easy installation, without the need to remove fastener
• Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
• UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
• UL and CSA rated up to 600 V per UL 486A/B
Recommended Installation Tool
CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡
| Part | Wire Range | Color Code | Stock Thickness(In.) | Max. Ins. | Stud Size | L | W | C |
| PNF18-6LF-C | 22-18 AWG | Red | 0.03 | 0.145 | #6 | 0.82 | 0.27 | 0.2 |
| PNF18-6LFW-C | 22-18 AWG | Red | 0.03 | 0.145 | #6 | 0.85 | 0.29 | 0.2 |
| PNF18-8LF-C | 22-18 AWG | Red | 0.03 | 0.145 | #8 | 0.89 | 0.29 | 0.26 |
| PNF18-10LF-C | 22-18 AWG | Red | 0.03 | 0.145 | #10 | 0.89 | 0.33 | 0.25 |
| PNF14-6LF-C | 18-14 AWG | Blue | 0.03 | 0.162 | #6 | 0.87 | 0.25 | 0.2 |
| PNF14-6LFW-C | 18-14 AWG | Blue | 0.03 | 0.162 | #6 | 0.84 | 0.29 | 0.2 |
| PNF14-8LF-C | 18-14 AWG | Blue | 0.03 | 0.162 | #8 | 0.93 | 0.29 | 0.25 |
| PNF14-10LF-C | 18-14 AWG | Blue | 0.03 | 0.162 | #10 | 0.93 | 0.33 | 0.25 |
| PNF10-6LF-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #6 | 1.02 | 0.3 | 0.2 |
| PNF10-8LF-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #8 | 1.05 | 0.3 | 0.2 |
| PNF10-10LF-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #10 | 1.05 | 0.34 | 0.22 |
| PNF10-14LF-L | 12-10 AWG | Yellow | 0.04 | 0.225 | 1/4" | 1.19 | 0.46 | 0.33 |
