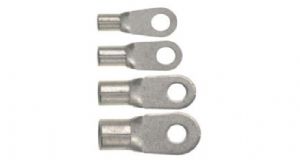

PANDUIT 大规格环形裸端
概述
• Designed for use with #8 - #2 AWG copper wire• Ring tongue design assures a secure connection in high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Brazed seam protects terminal barrel from splitting during the crimp process
• Barrel of terminal internally beveled to provide quick and easy wire insertion
• Maximum recommended operating temperature 302°F (150°C)
• UL and CSA rated up to 2000 V per UL 486A/B
| Part | Wire Range | Stock Thickness(In.) | Stud Size | L | W | C | Recommended Installation Tool |
| P8-8R-Q | 8 AWG | 0.04 | #8 | 1.12 | 0.42 | 0.43 | CT-1701‡,CT-2600,CD-2600-8‡ |
| P8-10R-Q | 8 AWG | 0.04 | #10 | 1.14 | 0.47 | 0.43 | CT-1701‡,CT-2600,CD-2600-8‡ |
| P8-14R-Q | 8 AWG | 0.04 | 1/4" | 1.14 | 0.47 | 0.43 | CT-1701‡,CT-2600,CD-2600-8‡ |
| P8-56R-Q | 8 AWG | 0.04 | 5/16" | 1.25 | 0.59 | 0.51 | CT-1701‡,CT-2600,CD-2600-8‡ |
| P8-38R-Q | 8 AWG | 0.04 | 3/8" | 1.25 | 0.59 | 0.51 | CT-1701‡,CT-2600,CD-2600-8‡ |
| P8-12R-Q | 8 AWG | 0.04 | 1/2" | 1.36 | 0.82 | 0.54 | CT-1701‡,CT-2600,CD-2600-8‡ |
| P6-8R-E | 6 AWG | 0.05 | #8 | 1.21 | 0.47 | 0.43 | CT-1701‡,CT-2600,CD-2600-6‡ |
| P6-10R-E | 6 AWG | 0.05 | #10 | 1.21 | 0.47 | 0.43 | CT-1701‡,CT-2600,CD-2600-6‡ |
| P6-14R-E | 6 AWG | 0.05 | 1/4" | 1.21 | 0.47 | 0.43 | CT-1701‡,CT-2600,CD-2600-6‡ |
| P6-56R-E | 6 AWG | 0.05 | 5/16" | 1.33 | 0.62 | 0.51 | CT-1701‡,CT-2600,CD-2600-6‡ |
| P6-38R-E | 6 AWG | 0.05 | 3/8" | 1.33 | 0.62 | 0.51 | CT-1701‡,CT-2600,CD-2600-6‡ |
| P6-12R-E | 6 AWG | 0.05 | 1/2" | 1.43 | 0.82 | 0.51 | CT-1701‡,CT-2600,CD-2600-6‡ |
| P4-10R-E | 4 AWG | 0.05 | #10 | 1.4 | 0.55 | 0.5 | CT-1701‡,CT-2600,CD-2600-4‡ |
| P4-14R-E | 4 AWG | 0.05 | 1/4" | 1.4 | 0.55 | 0.5 | CT-1701‡,CT-2600,CD-2600-4‡ |
| P4-56R-E | 4 AWG | 0.05 | 5/16" | 1.46 | 0.68 | 0.5 | CT-1701‡,CT-2600,CD-2600-4‡ |
| P4-38R-E | 4 AWG | 0.05 | 3/8" | 1.46 | 0.68 | 0.5 | CT-1701‡,CT-2600,CD-2600-4‡ |
| P4-12R-E | 4 AWG | 0.05 | 1/2" | 1.55 | 0.86 | 0.53 | CT-1701‡,CT-2600,CD-2600-4‡ |
| P2-10R-X | 2 AWG | 0.06 | #10 | 1.46 | 0.68 | 0.58 | CT-1701‡,CT-2600,CD-2600-2‡ |
| P2-14R-X | 2 AWG | 0.06 | 1/4" | 1.46 | 0.68 | 0.58 | CT-1701‡,CT-2600,CD-2600-2‡ |
| P2-56R-X | 2 AWG | 0.06 | 5/16" | 1.46 | 0.68 | 0.58 | CT-1701‡,CT-2600,CD-2600-2‡ |
| P2-38R-X | 2 AWG | 0.06 | 3/8" | 1.46 | 0.68 | 0.58 | CT-1701‡,CT-2600,CD-2600-2‡ |
| P2-12R-X | 2 AWG | 0.06 | 1/2" | 1.55 | 0.86 | 0.58 | CT-1701‡,CT-2600,CD-2600-2‡ |
