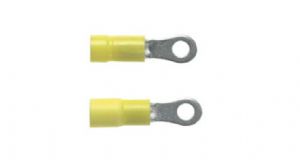

PANDUIT 重载乙烯绝缘环形端子
概述
• Manufactured from stock 56% thicker than a standard #16 – 14 AWG terminal for use in heavy-duty applications
• Insulation housing is marked with “HDR” to signify heavy-duty ring
• Ring tongue design assures a secure connection in high vibration applications
• Insulation support helps to prevent wire damage in bending applications
• Brazed seam protects terminal barrel from splitting during the crimp process
• Internal barrel serrations assure good wire contact and maximum tensile strength
• UL Flammability UL 94V-0, maximum insulation temperature 221°F (105°C)
• UL and CSA rated up to 600 V per UL 486A/B
Recommended Installation Tool
CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡
| Part | Wire Range | Color Code | Stock Thickness (In.) | Max. Ins. | Stud Size | L | W | C |
| Standard Heavy Duty Insulation | ||||||||
| PV12-6HDR-L | 16-12 AWG | Yellow | 0.05 | 0.225 | #6 | 1.05 | 0.31 | 0.35 |
| PV12-8HDR-L | 16-12 AWG | Yellow | 0.05 | 0.225 | #8 | 1.05 | 0.31 | 0.35 |
| PV12-10HDR-L | 16-12 AWG | Yellow | 0.05 | 0.225 | #10 | 1.08 | 0.37 | 0.33 |
| PV12-14HDR-L | 16-12 AWG | Yellow | 0.05 | 0.225 | 1/4" | 1.23 | 0.52 | 0.42 |
| PV12-56HDR-L | 16-12 AWG | Yellow | 0.05 | 0.225 | 5/16" | 1.23 | 0.52 | 0.42 |
| PV12-38HDR-L | 16-12 AWG | Yellow | 0.05 | 0.225 | 3/8" | 1.31 | 0.58 | 0.46 |
| Expanded Heavy Duty Insulation* | ||||||||
| PV12-6HDRX-L | 16-12 AWG | Yellow | 0.05 | 0.25 | #6 | 1.05 | 0.31 | 0.35 |
| PV12-8HDRX-L | 16-12 AWG | Yellow | 0.05 | 0.25 | #8 | 1.05 | 0.31 | 0.35 |
| PV12-10HDRX-L | 16-12 AWG | Yellow | 0.05 | 0.25 | #10 | 1.08 | 0.37 | 0.33 |
| PV12-14HDRX-L | 16-12 AWG | Yellow | 0.05 | 0.25 | 1/4" | 1.23 | 0.52 | 0.42 |
| PV12-56HDRX-L | 16-12 AWG | Yellow | 0.05 | 0.25 | 5/16" | 1.23 | 0.52 | 0.42 |
| PV12-38HDRX-L | 16-12 AWG | Yellow | 0.05 | 0.25 | 3/8" | 1.31 | 0.58 | 0.46 |
