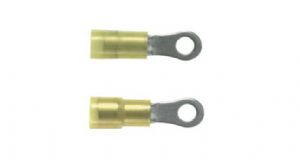

PANDUIT 重载尼龙绝缘环形端子

概述

• Manufactured from stock 56% thicker than a standard #16 – #14 AWG terminal for use in heavy-duty applications
• Insulation housing is marked with “HDR” to signify heavy-duty ring

• Ring tongue design assures a secure connection in high vibration applications
• Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
• UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
• UL and CSA rated up to 600 V per UL 486A/B

Recommended Installation Tool

CT-1550‡,CT-1551‡,CT-2500‡

Part	Wire Range	Color Code	Stock Thickness (In.)	Max. Ins.	Stud Size	L	W	C
PN12-8HDR-L	16-12 AWG	Yellow	0.05	0.225	#8	1.06	0.31	0.35
PN12-10HDR-L	16-12 AWG	Yellow	0.05	0.225	#10	1.09	0.37	0.33
PN12-14HDR-L	16-12 AWG	Yellow	0.05	0.225	1/4"	1.24	0.52	0.42
PN12-56HDR-L	16-12 AWG	Yellow	0.05	0.225	5/16"	1.24	0.52	0.42
PN12-38HDR-L	16-12 AWG	Yellow	0.05	0.225	3/8"	1.3	0.58	0.46
