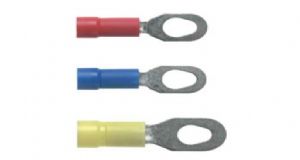

PANDUIT 多螺栓乙烯绝缘端子
概述
• Teardrop shaped mounting hole of multiple stud terminals permits use with #6, #8, or #10 size studs
• Ring tongue design assures a secure connection in high vibration applications
• Insulation support helps to prevent wire damage in bending applications
• Brazed seam protects terminal barrel from splitting during the crimp process
• Internal barrel serrations assure good wire contact and maximum tensile strength
• UL Flammability UL 94V-0, maximum insulation temperature 221°F (105°C)
• UL and CSA rated up 600 V per UL 486A/B
Recommended Installation Tool
CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡
| Part | Wire Range | Color Code | Stock Thickness (In.) | Max. Ins. | Stud Size | L | W | C |
| PV18-610R-CY | 22-18 AWG | Red | 0.03 | 0.150 | #6,#8,#10 | 1.00 | 0.31 | 0.25 |
| PV14-610R-C | 16-14 AWG | Blue | 0.03 | 0.170 | #6,#8,#10 | 1.00 | 0.31 | 0.25 |
| PV10-610R-L | 12-10 AWG | Yellow | 0.04 | 0.225 | #6,#8,#10 | 1.17 | 0.37 | 0.31 |
