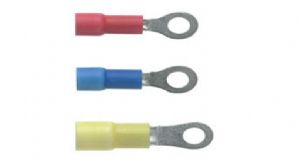

PANDUIT 加宽乙烯绝缘环形端子
概述
• Expanded wire entry designed to accommodate wire with a larger insulation thickness
• Ring tongue design assures a secure connection in high vibration applications
• Insulation support helps to prevent wire damage in bending applications
• Brazed seam protects terminal barrel from splitting during the crimp process
• Internal barrel serrations assure good wire contact and maximum tensile strength
• UL Flammability UL 94V-0, maximum insulation temperature 221°F (105°C)
• UL and CSA rated up 600 V per UL 486A/B
Recommended Installation Tool
CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡, CT-2500‡
| Part | Wire Range | Color Code | Stock Thickness (In.) | Max. Ins. | Stud Size | L | W | C |
| PV18-4RX-CY | 22-18 AWG | Red | 0.03 | 0.170 | #4 | 0.88 | 0.25 | 0.22 |
| PV18-6RX-CY | 22-18 AWG | Red | 0.03 | 0.170 | #6 | 0.89 | 0.25 | 0.22 |
| PV18-8RX-CY | 22-18 AWG | Red | 0.03 | 0.170 | #8 | 0.97 | 0.31 | 0.27 |
| PV18-10RX-CY | 22-18 AWG | Red | 0.03 | 0.170 | #10 | 0.96 | 0.31 | 0.27 |
| PV18-14RX-CY | 22-18 AWG | Red | 0.03 | 0.170 | 1/4" | 1.17 | 0.46 | 0.40 |
| PV18-56RX-LY | 22-18 AWG | Red | 0.03 | 0.170 | 5/16" | 1.17 | 0.46 | 0.40 |
| PV18-38RX-LY | 22-18 AWG | Red | 0.03 | 0.170 | 3/8" | 1.25 | 0.53 | 0.45 |
| PV14-4RX-C | 16-14 AWG | Blue | 0.03 | 0.200 | #4 | 0.87 | 0.25 | 0.19 |
| PV14-6RX-C | 16-14 AWG | Blue | 0.03 | 0.200 | #6 | 0.96 | 0.31 | 0.25 |
| PV14-8RX-C | 16-14 AWG | Blue | 0.03 | 0.200 | #8 | 0.96 | 0.31 | 0.25 |
| PV14-10RX-C | 16-14 AWG | Blue | 0.03 | 0.200 | #10 | 0.96 | 0.31 | 0.25 |
| PV14-14RX-L | 16-14 AWG | Blue | 0.03 | 0.200 | 1/4" | 1.16 | 0.46 | 0.37 |
| PV14-56RX-L | 16-14 AWG | Blue | 0.03 | 0.200 | 5/16" | 1.16 | 0.46 | 0.37 |
| PV14-38RX-L | 16-14 AWG | Blue | 0.03 | 0.200 | 3/8" | 1.25 | 0.53 | 0.42 |
| PV10-6RX-L | 12-10 AWG | Yellow | 0.04 | 0.250 | #6 | 1.10 | 0.31 | 0.30 |
| PV10-8RX-L | 12-10 AWG | Yellow | 0.04 | 0.250 | #8 | 1.10 | 0.31 | 0.30 |
| PV10-10RX-L | 12-10 AWG | Yellow | 0.04 | 0.250 | #10 | 1.10 | 0.31 | 0.30 |
| PV10-14RX-L | 12-10 AWG | Yellow | 0.04 | 0.250 | 1/4" | 1.29 | 0.52 | 0.39 |
| PV10-56RX-L | 12-10 AWG | Yellow | 0.04 | 0.250 | 5/16" | 1.29 | 0.52 | 0.42 |
| PV10-38RX-L | 12-10 AWG | Yellow | 0.04 | 0.250 | 3/8" | 1.39 | 0.58 | 0.46 |
